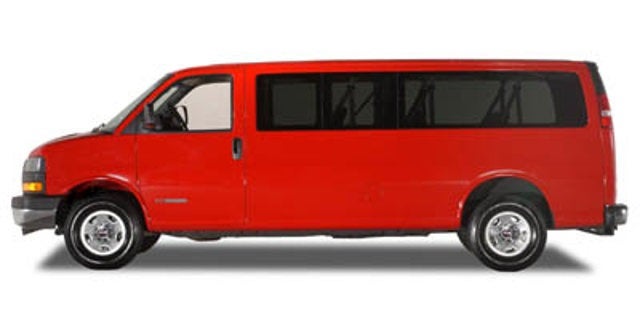

2005 GMC Savana G2500 HD

  • Call for Price Internet Price

Visit our Store

Vehicle Information

VIN: 1GTGG25U451127501
Stock #: PN12451A
Model Code: TG23405
  • Body Style 3D Cargo Van
  • Exterior Color Summit White
  • Interior Color Medium Dark Pewter
  • Mileage 384,264
  • Engine 8 Cyl - 6 L
  • Transmission 4-Speed Automatic HD Electronic with Overdrive
  • Fuel Type Gasoline

Highlighted Features

Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
  • 3rd Row Seating

Dealer Comments

Recent Arrival! Clean CARFAX.
2005 GMC Savana G2500 HD

All Features

  • Rear wheel drive
  • Battery, 600 cold-cranking amps, includes rundown protection and retained accessory power
  • GVWR, 8600 lbs. (3901 kg) (Standard on *G23*05 Models.)
  • Frame, full-length box ladder type
  • Suspension, front, independent coil springs and stabilizer bar (Requires *G***05 Models.)
  • Suspension, rear, hypoid drive axle, with multi-leaf springs
  • Tires, front LT245/75R16E, all-season, blackwall (Standard on the *G23405, *G23705, *G33405 and *G33705 Models.)
  • Tires, rear LT245/75R16E, all-season, blackwall (Standard on the *G23405, *G23705, *G33405 and *G33705 Models.)
  • Tire, spare LT245/75R16E, all-season, blackwall, located at rear underbody of vehicle (Standard on the *G23405-B, *G23705, *G33405 and *G33705 Models.)
  • Wheels, Gray painted, includes Gray center caps and steel spare
  • Steering, power
  • Brakes, 4-wheel antilock, 4-wheel disc
  • Fuel capacity, approximate, 31 gallon
  • Exhaust, aluminized stainless-steel muffler and tailpipe
  • Paint, solid
  • Body, standard
  • Bumpers, front and rear, painted Black, includes step-pad (Not available with (ZR7) Chrome Appearance Package.)
  • Grille, Black composite, with single rectangular halogen headlamps
  • Headlamps, single rectangular halogen
  • Daytime running lamps
  • Mirrors, outside rearview, manual folding, Black (If the van is an extended Model (*G**7**), or if the van has no rear windows, then the van will get a flat right side mirror. All other vans will have a convex right side mirror.)
  • Glass, Solar-Ray light tinted, all windows
  • License plate kit, front
  • Wipers, intermittent, front wet-arm with pulse washers
  • Door, swing-out passenger side, 60/40 split
  • Seats, driver and passenger high-back reclining buckets, adjustable, with head restraints and vinyl or cloth trim
  • Seats, front vinyl reclining buckets, includes head restraints (Requires (**W) Interior Trim.)
  • Floor covering, Black rubberized vinyl full length floor covering
  • Key, single, 2-sided
  • Oil life monitor
  • Warning tones, headlamp on, key-in-ignition
  • Steering wheel, steel sleeve column, includes theft-deterrent locking feature, Black
  • Tow/haul mode selector, IP mounted
  • Theft-deterrent system, PASSlock
  • Air conditioning, front manual
  • Defogger, side window
  • Sound system, ETR AM/FM stereo, includes seek-and-scan and digital clock. Includes front door speakers (2)
  • Console, base, includes open storage bin
  • Mirror, inside rearview, manual day/night
  • Headliner, cloth, over driver and passenger
  • Visors, padded, driver and passenger side
  • Assist handle, front passenger
  • Lighting, 2 dome lamps, includes defeat switch and door handle-activated switches
  • Brakes, 4-wheel antilock, 4-wheel disc
  • Air bags, frontal, driver and right front passenger (Includes passenger side air bag deactivation switch on models with GVWR, 8600 lbs. (3901 kg) and above. Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owner's Manual for more safety information.)
  • Air bag deactivation switch, passenger side (Requires (C6P) GVWR, 8600 lbs. (3901 kg) or (C6Y) GVWR, 9600 lbs. (4354 kg))
  • Door beams, steel-side
  • Daytime running lamps

ENGINE, VORTEC 6000 V8 SFI

  • (300 HP [223.8 kW] @ 4400 rpm
  • 360 lb.-ft. [486.6 N-m] @ 4000 rpm)

  • 4 Speakers
  • AM/FM radio
  • Air Conditioning
  • Power steering
  • 4-Wheel Disc Brakes
  • ABS brakes
  • Dual front impact airbags
  • Front anti-roll bar
  • Front wheel independent suspension
  • Passenger cancellable airbag
  • Driver door bin
  • Voltmeter
  • 12-Passenger Seating (2-3-3-4 Seating Config)
  • 3rd row seats: bench
  • 4th-Row Bench Seat
  • Front Bucket Seats
  • Passenger door bin
  • Variably intermittent wipers
  • 3.73 Axle Ratio
  • GREAT FINANCING OPTIONS
  • Vehicle
    • Rear Door Type: Dual Swing-out
  • Electrical
    • Cold Cranking Amps @ 0° F (Primary): 600
    • Maximum Alternator Capacity (amps): 105
    • Maximum Alternator Watts: - TBD -
  • Cooling System
    • Total Cooling System Capacity (qts): 14.4
    • Total Cooling System Capacity (qts): 13.6
  • Weight Information
    • Gross Axle Wt Rating - Front (lbs): 4100
    • Gross Axle Wt Rating - Rear (lbs): 5360
    • Curb Weight - Front (lbs): 2667
    • Curb Weight - Rear (lbs): 2197
    • Gross Vehicle Weight Rating Cap (lbs): 8600
    • Gross Combined Wt Rating (lbs): 16000
    • Gross Combined Wt Rating (lbs): 12000
  • Trailering
    • Dead Weight Hitch - Max Trailer Wt. (lbs): 4000
    • Dead Weight Hitch - Max Tongue Wt. (lbs): 400
    • Wt Distributing Hitch - Max Trailer Wt. (lbs): 10000
    • Wt Distributing Hitch - Max Trailer Wt. (lbs): 6400
    • Wt Distributing Hitch - Max Tongue Wt. (lbs): 640
  • Suspension
    • Suspension Type - Front: Independent Coil
    • Suspension Type - Rear: Hypoid Multi-Leaf
    • Spring Capacity - Front (lbs): 4100
    • Spring Capacity - Rear (lbs): 5360
    • Axle Type - Front: Independent
    • Axle Type - Rear: Semi-Floating
    • Axle Capacity - Front (lbs): 4100
    • Axle Capacity - Rear (lbs): 5360
    • Axle Ratio (:1) - Rear: 3.73
    • Shock Absorber Diameter - Front (mm): - TBD -
    • Shock Absorber Diameter - Rear (mm): - TBD -
    • Stabilizer Bar Diameter - Front (in): 1.38
  • Brakes
    • Brake Type: Pwr
    • Brake ABS System: 4-Wheel
    • Disc - Front (Yes or ): Yes
    • Disc - Rear (Yes or ): Yes
    • Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
    • Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
  • Tires
    • Front Tire Order Code: XHH
    • Rear Tire Order Code: YHH
    • Spare Tire Order Code: ZHH
    • Front Tire Size: LT245/75R16E
    • Rear Tire Size: LT245/75R16E
    • Spare Tire Size: LT245/75R16E
    • Front Tire Capacity (lbs): 2060
    • Rear Tire Capacity (lbs): 2680
    • Spare Tire Capacity (lbs): -TBD-
    • Revolutions/Mile @ 45 mph - Front: - TBD -
    • Revolutions/Mile @ 45 mph - Rear: - TBD -
    • Revolutions/Mile @ 45 mph - Spare: - TBD -
  • Wheels
    • Front Wheel Size (in): 16 x - TBD -
    • Rear Wheel Size (in): 16 x - TBD -
    • Spare Wheel Size (in): 16 x - TBD -
    • Front Wheel Material: Steel
    • Rear Wheel Material: Steel
    • Spare Wheel Material: Steel
  • Steering
    • Steering Type: Pwr-Assisted
    • Steering Ratio (:1), On Center: 17.2
    • Steering Ratio (:1), At Lock: - TBD -
    • Turning Diameter - Curb to Curb (ft): 49.2
    • Turning Diameter - Wall to Wall (ft): - TBD -
  • Frame
    • Frame Type: Ladder
  • Fuel Tank
    • Fuel Tank Capacity, Approx (gal): 31
    • Fuel Tank Location: LH Midship Inboard
  • Doors
    • Side Door Type: Swing-out
  • Exterior Dimensions
    • Wheelbase (in): 135
    • Length, Overall w/rear bumper (in): 224.1
    • Width, Max w/o mirrors (in): 79.4
    • Height, Overall (in): 81.6
    • Overhang, Front (in): - TBD -
    • Overhang, Rear w/bumper (in): - TBD -
    • Ground to Top of Load Floor (in): 27.7
    • Ground Clearance, Front (in): 8.6
    • Ground Clearance, Rear (in): 7.6
    • Rear Door Opening Height (in): 49.4
    • Rear Door Opening Width (in): 57.0
    • Side Door Opening Height (in): 47.9
    • Side Door Opening Width (in): 44.1
    • Step Up Height - Front (in): 20.1
    • Step Up Height - Side (in): 20.9
  • Cargo Area Dimensions
    • Cargo Area Length @ Floor to Console (in): 153.6
    • Cargo Area Length @ Floor to Seat 1 (in): 127.8
    • Cargo Area Width @ Beltline (in): - TBD -
    • Cargo Box Width @ Wheelhousings (in): 52.7
    • Cargo Box (Area) Height (in): 51.9
    • Cargo Volume (ft³): 225.1
  • Interior Dimensions
    • Passenger Capacity: 2
    • Front Head Room (in): 40.2
    • Front Leg Room (in): 41.3
    • Front Shoulder Room (in): 68.8
    • Front Hip Room (in): 65.5
  • Summary
    • Vehicle Name: GMC Savana Cargo Van
    • Body Style: 2500 Cargo Van 135" WB
    • Body Code: ZW9
